  • Smart Choices Require Research

    Share our brochure and specs sheet with your friends and collegues

    Download now

    Brochure
    Specs Sheet
  • Exterior

  • Weather-tight and secure swinging doors
    Heavy-duty locking system

    Drag coefficient ≈0.45

    Front disk brake

    CBS Combined Braking System

    Rear drum brakes

    Alloy wheels for better performance

    1300 liters of cargo volume

    Rear-view camera

    Easy parking

    Robust door hinges

    Door holder hook

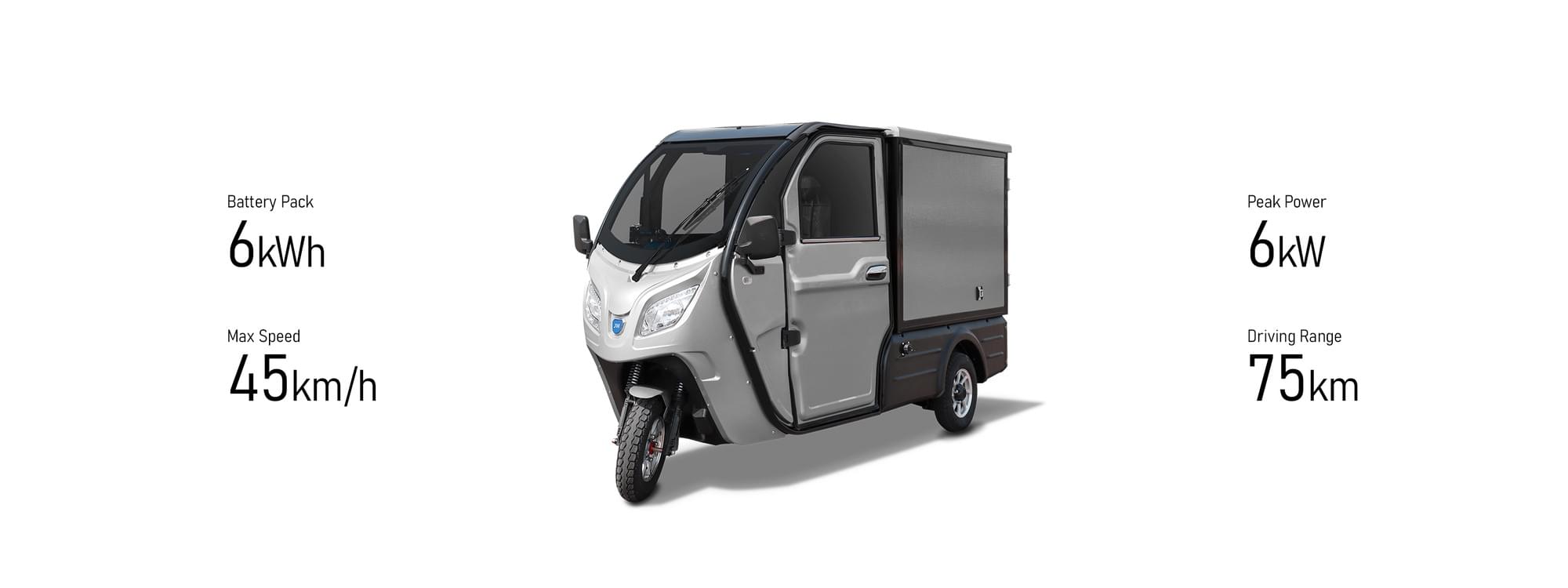

    6000W Peak power

    Electric motor

    Quarter glass

    with enhanced visibility

    LED tail lights

  • Want to reduce your cost of delivery?

    Start by going electric with Wli3 and reduce your fuel cost
    Order Now
  • Technical Specification

    General Information

    Classification: L5e-B

    Body structure: Load-bearing

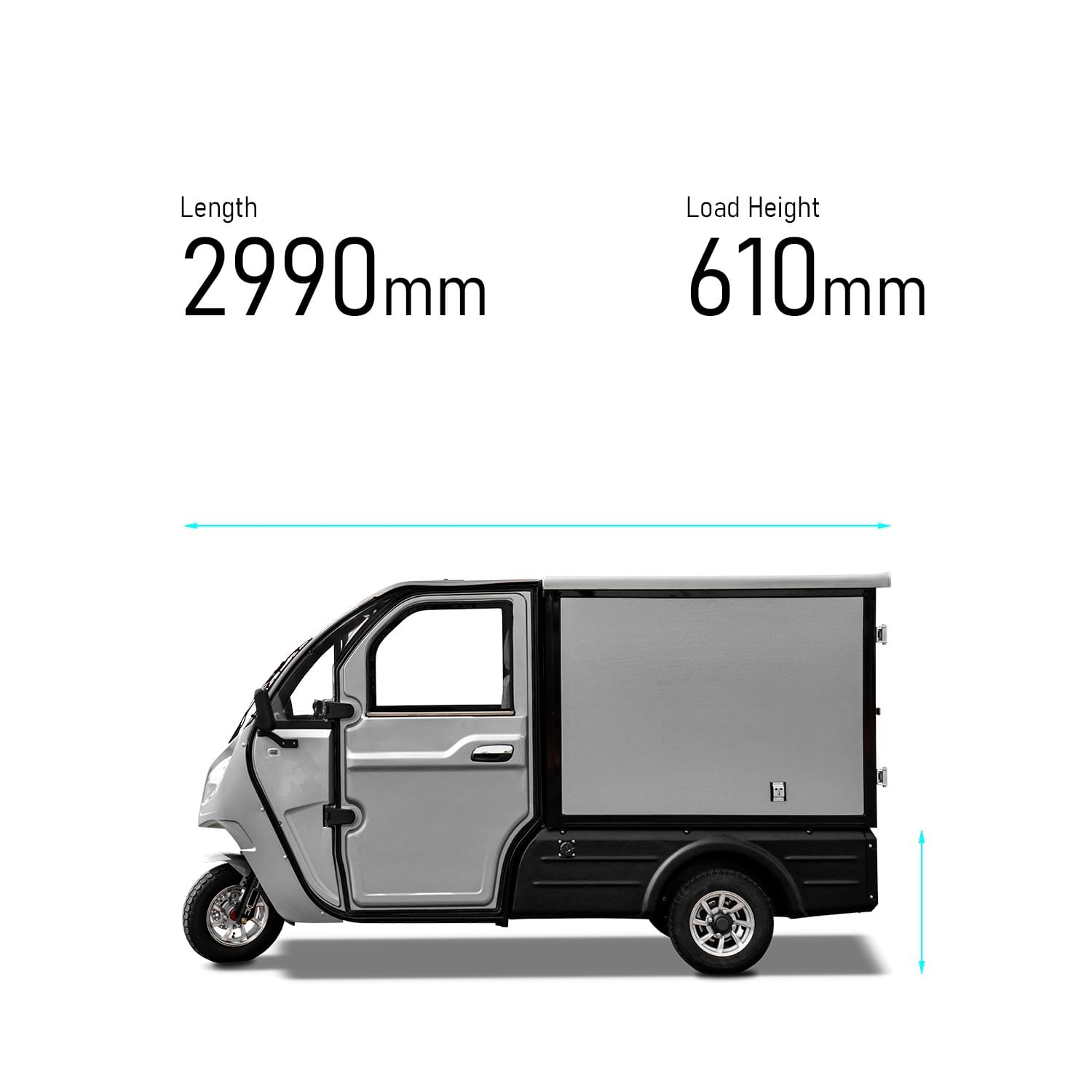

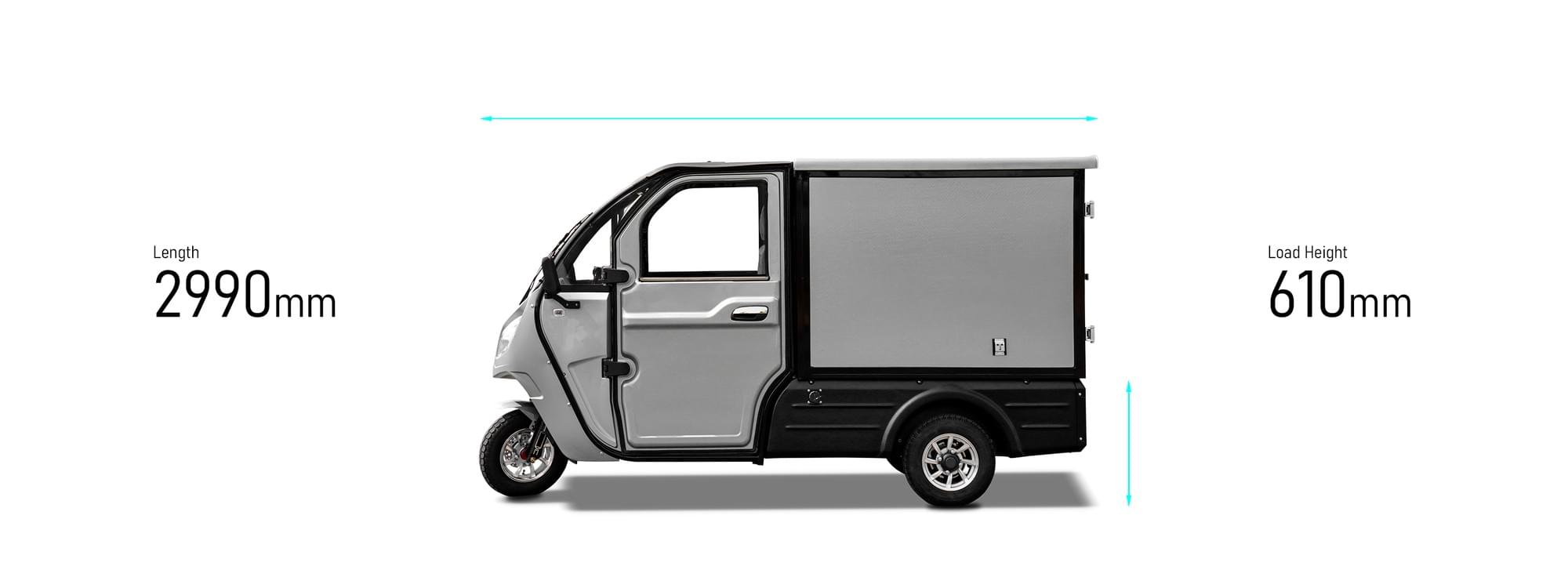

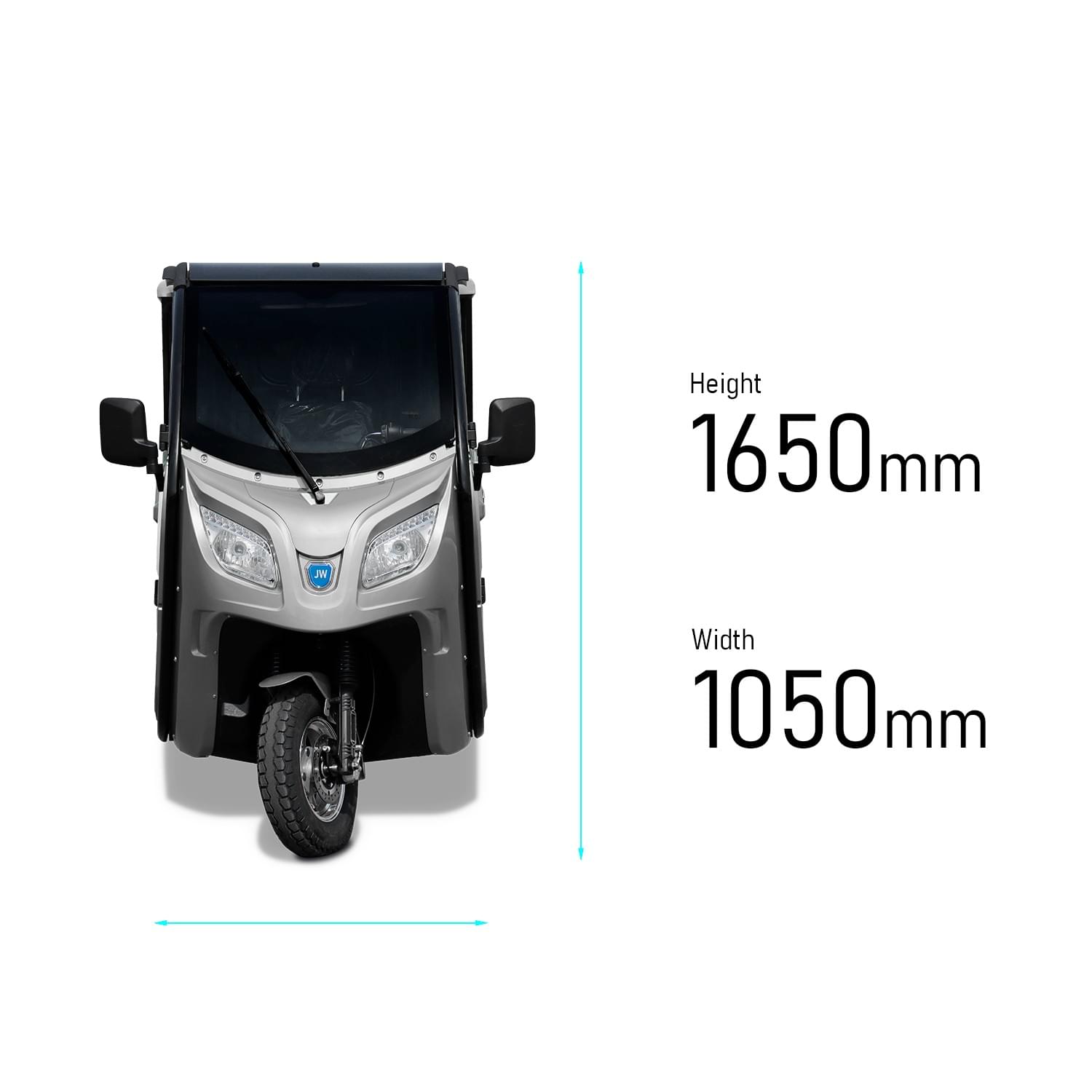

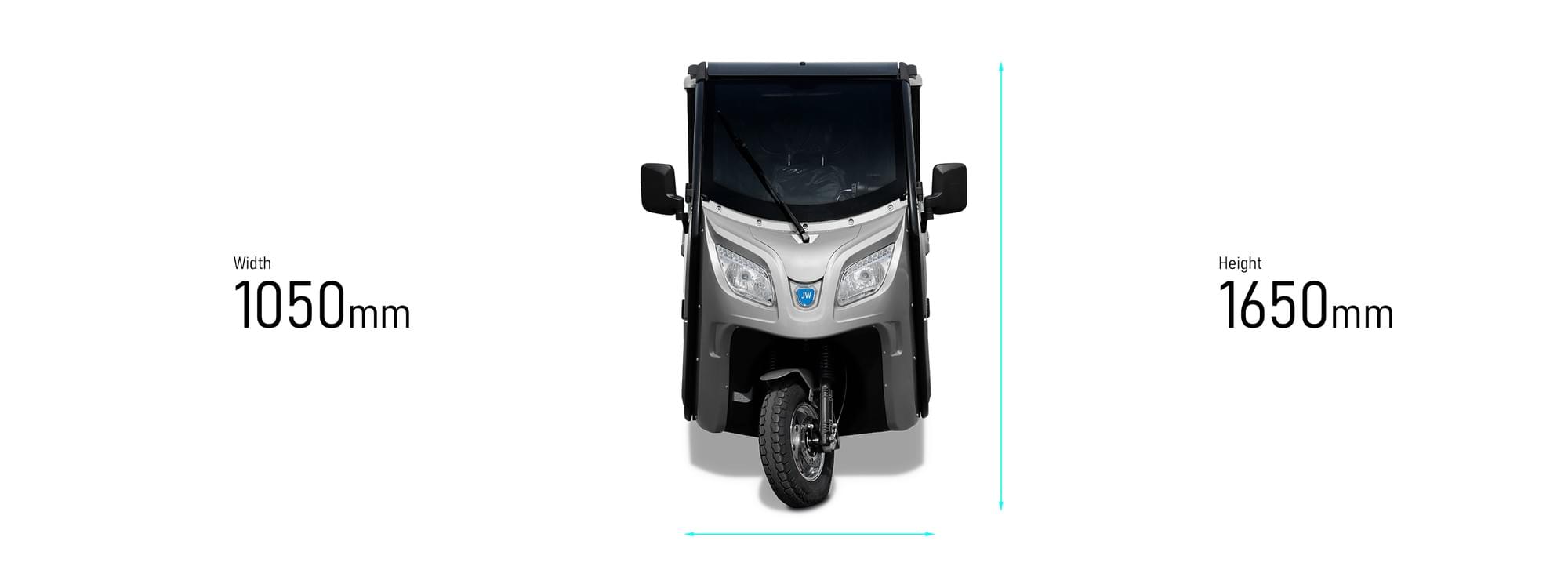

    Dimensions: L2990 × W1050 × H1650 mm

    Width (Front/Rear): 830 (1075 incl. mirror) / 1050 mm

    Wheelbase: 2100 mm

    Seat/Doors: 1/2

    Ramp angles (Front/Rear): 90° / 22°

    Min. turning radius: 4500 mm

    Min. ground clearance: 110 mm

    GVW: 830 kg

    Curb weight: 427 kg

    Driving Range

    Driving range (WMTC): 75 km 2

    Real-life driving range: 60+ km

    Energy consumption: ≈ 10 kWh/100km

    Energy efficiency: ≈ 10 km/kWh

    Electric Motor

    Motor type: PMSM

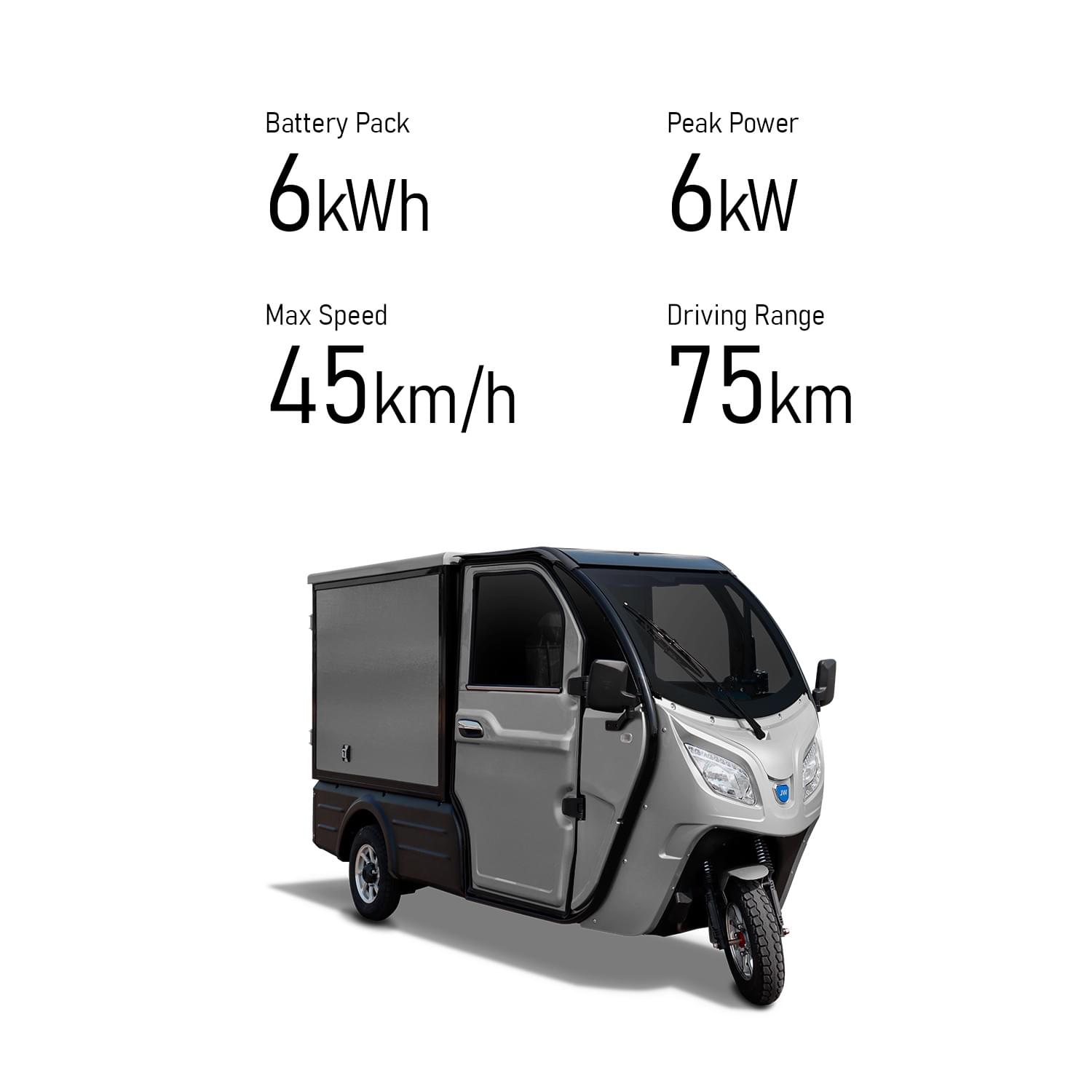

    Peak power: 6000 W

    Peak torque: 45 N.m

    Top speed: 45 km/h

    Gradeability: 20% (11.54°)

    Drive mode: Rear-wheel drive

    1-Speed transmission: Fixed ratio

    Battery Pack

    Total Capacity: 6000 Wh 1

    Cell Type: LiFePO4

    Pack Voltage: 60V

    Pack Capacity: 100Ah

    Battery pack weight: 50 kg (±10)

    Charging

    Charging mode: AC slow charging

    On-board charger (OBC): 1 kW

    Charging time (20-80%): ≈ 4.5 h 3

    Charging time (0-100%): ≈ 7.5 h 3

    Charging distance in 1 hour (est.): ≈ 8 km 3

    Cargo Box

    Loading height: 610 mm

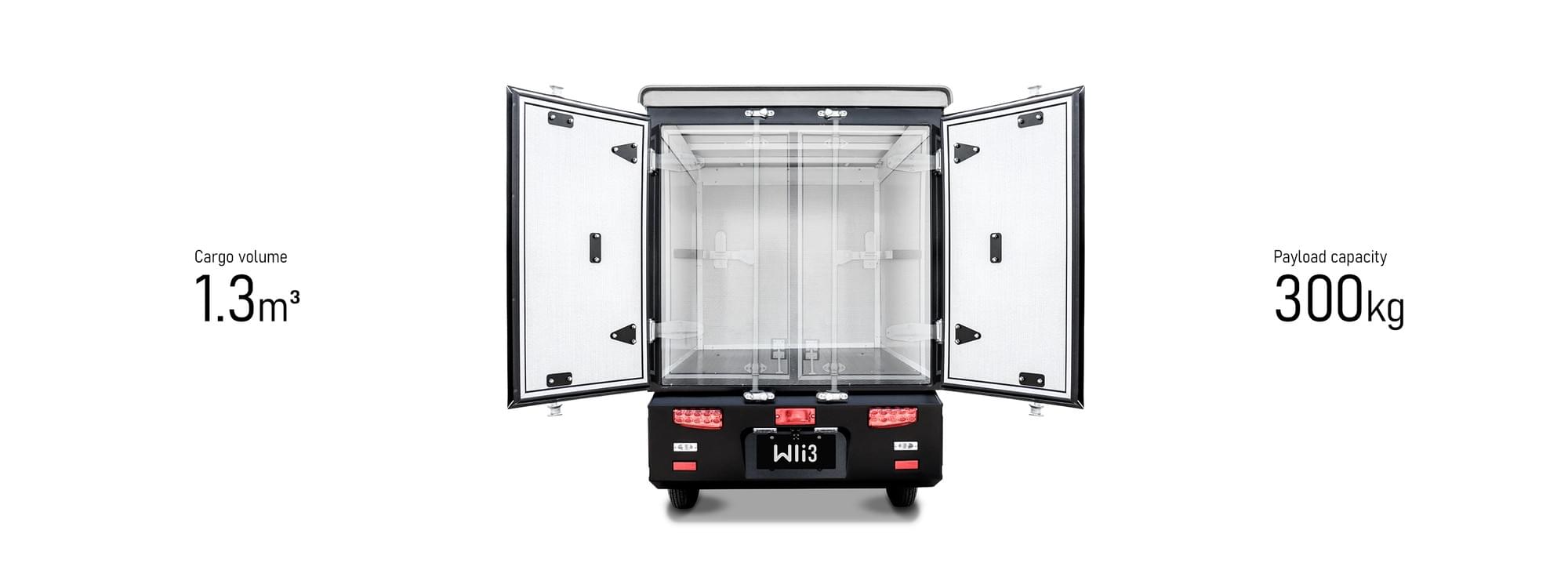

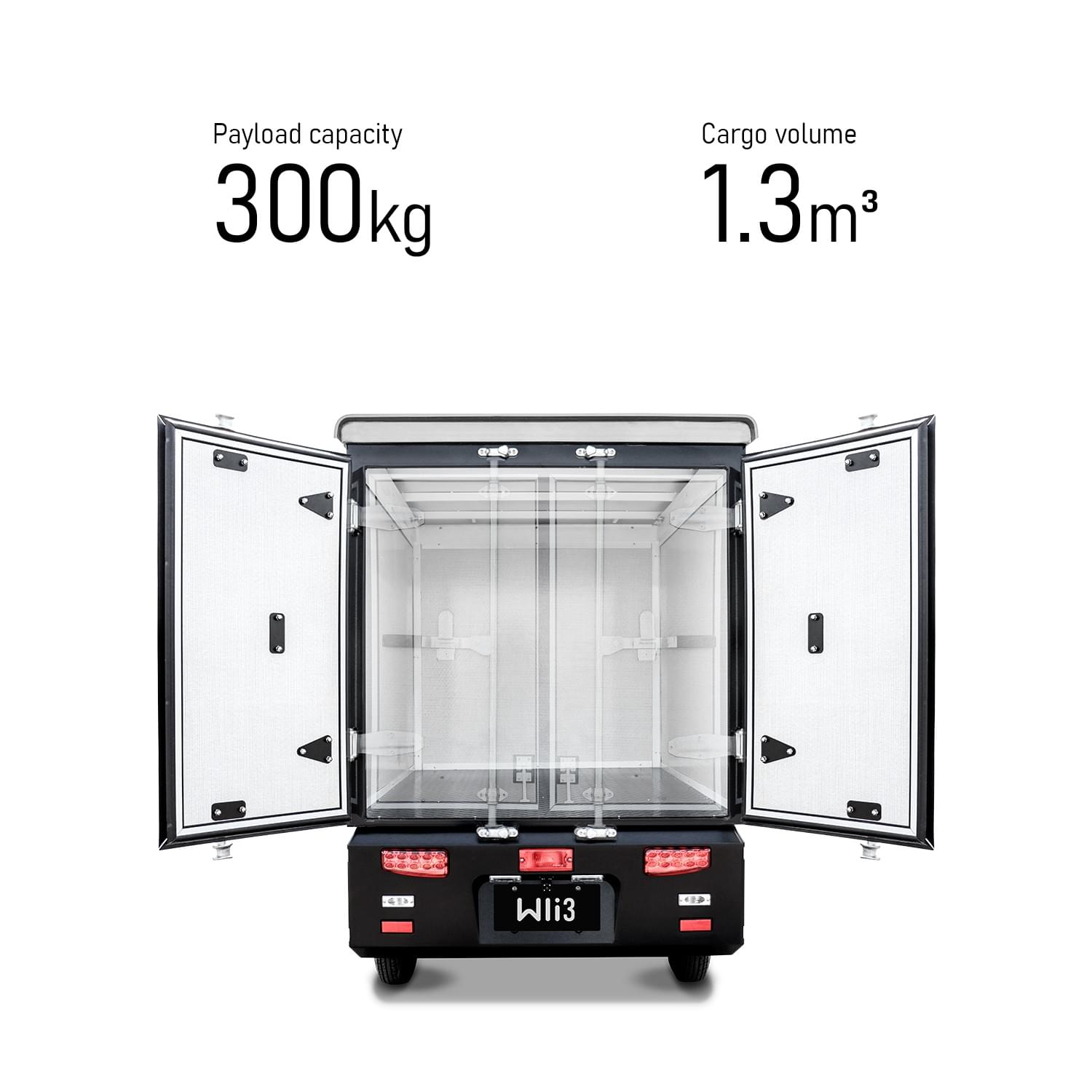

    Cargo volume: 1.3 m³

    Payload capacity: 300 kg 4

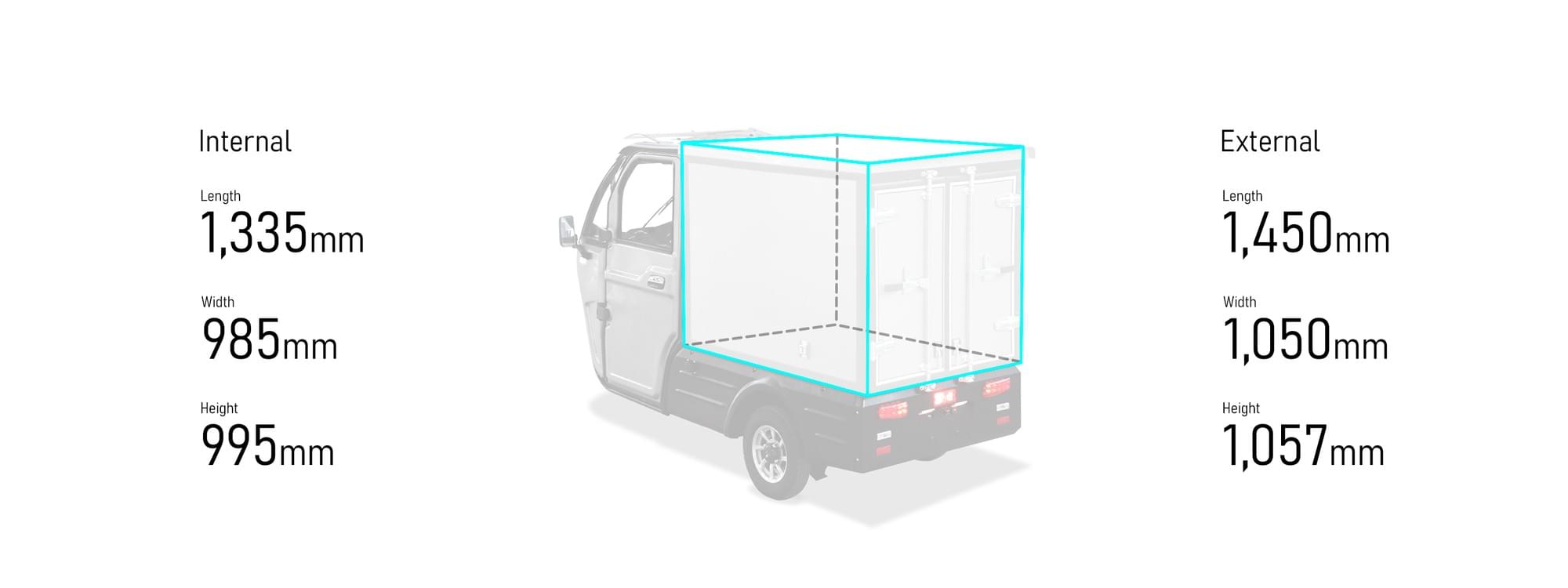

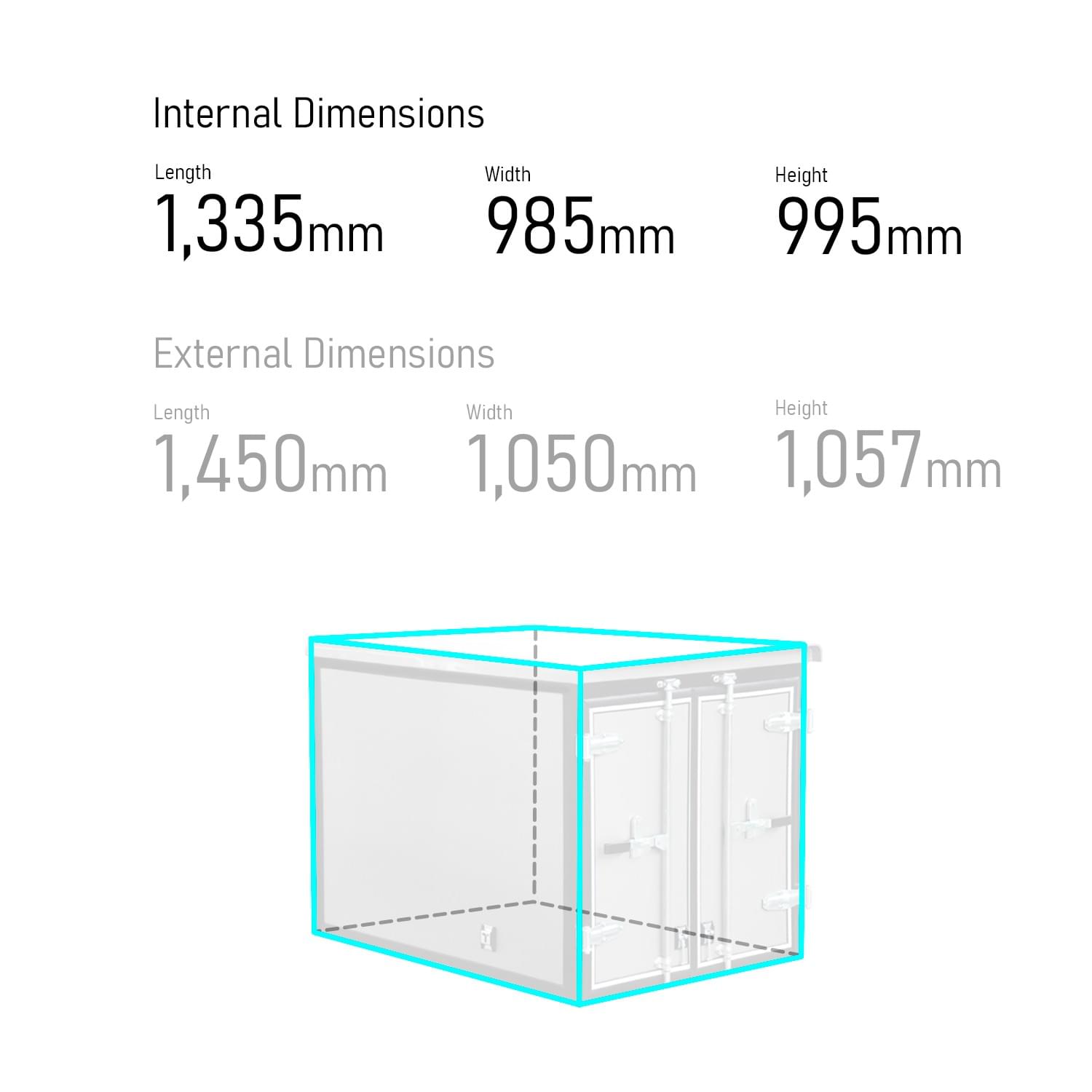

    Cargo Outside: L1450 × W1050 × H1057 mm

    Cargo Inside: L1335 × W985 × H995 mm

    Tires & Suspensions

    Brake (Front / Rear): Disc / Drum

    Tires (Front/Rear): 120-90-10 / 120-90-10

    Wheels: Aluminium

    Front suspension: Fork Shock Absorber

    Rear suspension: Integrated Dumping

    Lights

    Combination Tail light: LED

    Rear fog & Reversing light: LED

    Cabin lighting: LED

    Daytime running light: Halogen

    Front combination light: Halogen

    Standard Accessories

    CBS Combined Braking System

    Heating

    Single Intermittent Wiper

    PU Leather Seat Cover

    4-Way adjustable Seats (Manual)

    Sun Visor (Flip)

    Central Door Lock

    Key-in Ignition Switch

    3-Point Safety Belt

    Bluetooth Radio MP3/MP4

    2 × Loudspeaker

    1 × USB Port

    Power Windows

    Central Woor Locking

    Door Storage Compartment

    Bluetooth Connectivity

    Rear View Camera

    Reversing Warning Alarm

    GB/T Charging Plug

    Digital LCD Color Instrument Cluster

    Gear Shift (R N D)

    Air Vents

    Handlebar

    4 × Storage Compartment

    Options

    6 kWh Lead Acid Battery Pack

  • 1 The battery pack capacity may/will degrade over time and usage.

    2 The actual driving range will vary depending on driving behaviors, charging intervals, driving speed, cargo load weight and weather conditions.

    3 The charging times are estimates.

    4 The permissible total cargo weight must not exceed. Other platfroms are available on a build-to-order basis and are offered upon request only.

    Technical specifications and data are valid at the time of publishing. The product images shown are for illustrative purposes only. Specifications are subject to change without prior notice.

  • Interior

    Sunroof

    with tilt-open functon

    Sun visor

    Wide handlebar

    Simple and easy dashboard

  • 3-point safety seat belt

    Power window

    Brake pedal

    Parking brake

  • Left handlebar control switches

    Right handlebar control switches

  • Cargo Platforms

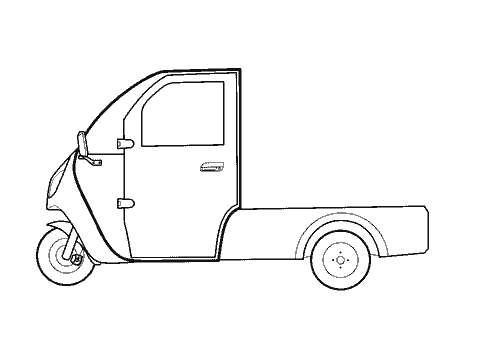

    Jonway EV - Wli3 Flatbed

    Flatbed

    Base Model

    Order Now

    Custom cargo platform

    Best-Seller

    Jonway EV - Wli3 Cargo Box

    Cargo Box

    Standard Model

    Order Now

    Cargo box with rear door

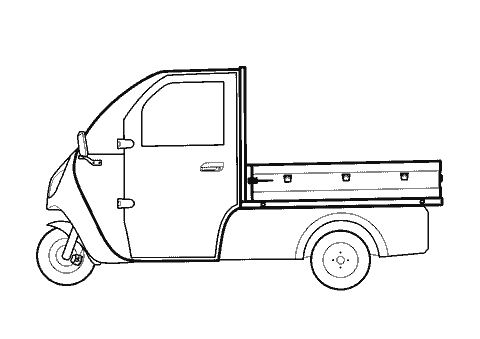

    Jonway EV - Wli3 Pickup

    Pickup

    Made-to-order

    Order Now

    Pickup with steel tray

  • Wli3 Warranty

    For current warranty conditions and details consult with your local dealer and/or distributor.

    Battery

    3 years or 80,000 km

    (whichever comes first)

    Vehicle

    1 years or 20,000 km

    (whichever comes first)

  • Ready to lower your total cost of ownership?

    Act now to optimize your operations!

    Fill out the form below, and our sales team will provide you with a competitive quotation.
