  • Brief Specifications

    15 kW

    Peak power

    4 hrs

    Charging 20-80%

    100+ km

    Real world range

    11.5 kWh

    Battery pack

    70 km/h

    Top speed

    Type 2

    Charging plug

    400 kg

    Payload

    2.2 kWh

    OBC

    DOWNLOAD SPECS

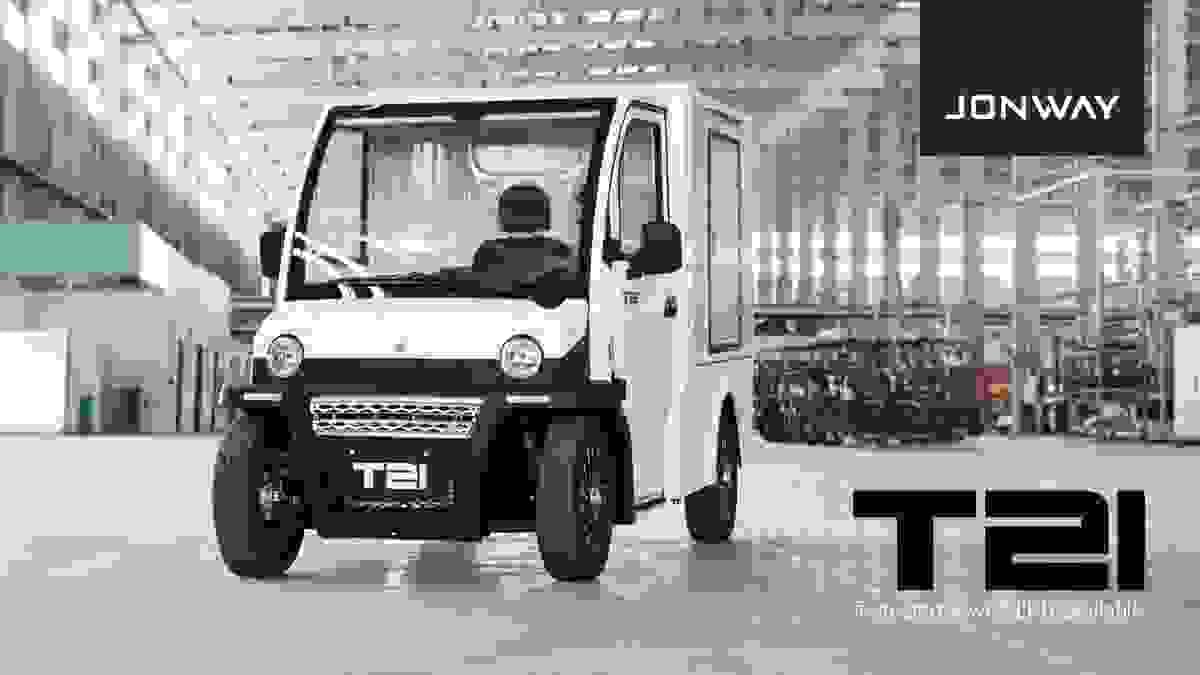

  • T21 Mini Truck

    Its compact design allows for effortless driving and maneuvering in narrow streets and busy urban environments. T21 ensures your operations run smoothly while significantly lowering your total cost of ownership (TCO).

  • Sectors T21 is useful

    Designed to carry up to 400 kg, it ensures efficient and uninterrupted service throughout the day

    Tourism

    Golf Course

    Parks

    Logistics

    Agriculture

    Municipality

    Landscaping

    Resort & Camps

    Hospitals

    Campuses

  • ORDER YOUR T21 NOW

    T21 will significantly lower your total cost of ownership (TCO)
    ORDER NOW

    BECOME OUR DEALER TODAY

    Partner with us, and let’s reshape the future of micro electric vehicles together
    APPLY NOW
  • CDP

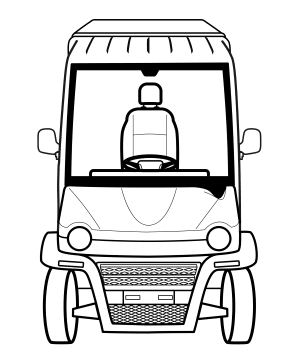

    Central driving position
    T21 Central driving position

    LHD

    Left-hand drive
    T21 Left hand drive
  • T21 WARRANTY

    For current warranty conditions and details consult with your local dealer and/or distributor.

    Battery

    4 years or 200,000 km

    (whichever comes first)

    Vehicle

    3 years or 40,000 km

    (whichever comes first)

  • Technical Specifications

    Vehicle Category: L7e-CU

    This specs only shows the High-speed versons of T21

    General Information

    Driver: LHD (available as center-seat)

    Color: White (Standard)

    Body structure: Load-bearing

    Dimensions (L × W × H): 3250 × 1230 (1460 mirrors) × 1890 mm

    Wheelbase: 2140 mm

    Seats: 2 (available as one-seater)

    Ramp angles (Front/Rear): 90° / 20°

    Min. turning radius: 5500 mm

    Track Width (Front/Rear): 960 / 1060 mm

    Min. ground clearance: 140 mm

    GVW (Gross): 930 kg

    Curb weight: 652 kg

    Battery Pack

    Total capacity: 17.66 kWh

    Cooling method: Air-cooled

    Cell chemistry: LiFePO4

    Nominal voltage: 76 V

    Rated capacity: 230 Ah

    Weight (±10): 147 kg

    Electric Motor

    Motor type: PMSM

    Peak power: 15 kW / 20 hp

    Peak torque: 85 N.m

    Top speed: 70 km/h

    Gradeability: 15% (8.5°)

    Drive mode: RWD

    1-Speed transmission: Fixed Ratio

    Driving range (WVTA): 210 km *

    Real-life driving range: 168+ km *

    Energy consumption (WVTA): ≈ 105 Wh/km *

    Energy efficiency (WVTA): ≈ 9.5 km/kWh *

    CO2 emission: 0 g/km *

    Charging

    Charger standard: EU Type 2

    Charging mode: AC Slow Charging

    On-board charger (OBC): 3.3 kW

    Charging time (20-80%): ≈ 4 hours

    Charging time (0-100%): ≈ 6.7 hours

    Standard Features

    Push-Start Button

    Imitation Leather Seat Cover

    Intermittent Windshield Wipers

    Central Door Locking System

    Key FOB / Keyless Entry

    4-Way Adjustable Seats (manual) x 2

    Power Windows

    Sun Visor (flip) x 2

    Door Storage Box

    Heating

    7" LCD Infotainment Display

    USB Port x 1

    Radio, MP4, MP3

    Loudspeaker x 2

    Bluetooth Connectivity

    OBD Connection

    Portable EU Type 2 Charger (220V)

    Foldable Warning Triangle & Safety Vest

    Tires & Suspensions

    Brakes (Front / Rear): Disc / Drum

    Wheels: Alloy

    Tire size: 145/70R12 (250 kPa)

    Front Suspension: McPherson

    Rear Suspension: Leaf Spring

    Parking Brake: Foot Brake

    Lights

    Front Combination Light: Halogen

    Turn Signal Lights Halogen

    Daytime Running Light: Halogen

    Combination Tail Light: LED

    Reversing Light: LED

    Interior Lighting: LED

    Box Sizes

    Cargo Volume: 2 m³

    Payload Capacity: 278 kg

    Outside (L × W × H): 1510 × 1194 × 1277 mm

    Inside (L × W × H): 1397 × 1158 × 1207 mm

    Load Height: 710 mm

    Cargo Platforms

    Flatbed

    Pick-up

    Box with side door

    Refrigerated Box

    Options

    Air Conditioning

    Paint Colors

    Yellow

    Black

    Light Green

    Light Grey

    Light Blue

    Custom Color (On Request)

    Cargo Platfroms

    Pick-up Tray (Alloy)

    Pick-up Tray (Steel)

    Box with side door

    Refrigerated Box

  • * The vehicle‘s performance data depends on the specific battery pack capacity (7.68 kWh, 11.52 kWh); Range: 80 km - 130 km (WVTA)

    The battery pack capacity may/will degrade over time and usage.

    The actual driving range will vary depending on driving behaviors, charging intervals, driving speed, cargo load weight and weather conditions.

    The figures shown are for comparability purposes; only compare with other vehicles tested to the same technical procedures and similar vehicle weight class.

    The charging times are estimates. Charging stations must be Type 2 compatible.

    The permissible total cargo weight must not exceed.

    Technical specifications and data are valid at the time of publishing.

    The product images shown are for illustrative purposes only.

    Specifications are subject to change without prior notice.

    Specifications shown are for the bigger battery pack (11.52 kWh) T21 only.

    For more details please contact our sales team via "contact us" page.

  • Cargo Platforms

    Products with (*) are available on a build-to-order basis and are offered upon request only.

    Jonway EV T21 Box mini truck

    Cargo Box

    Rear door

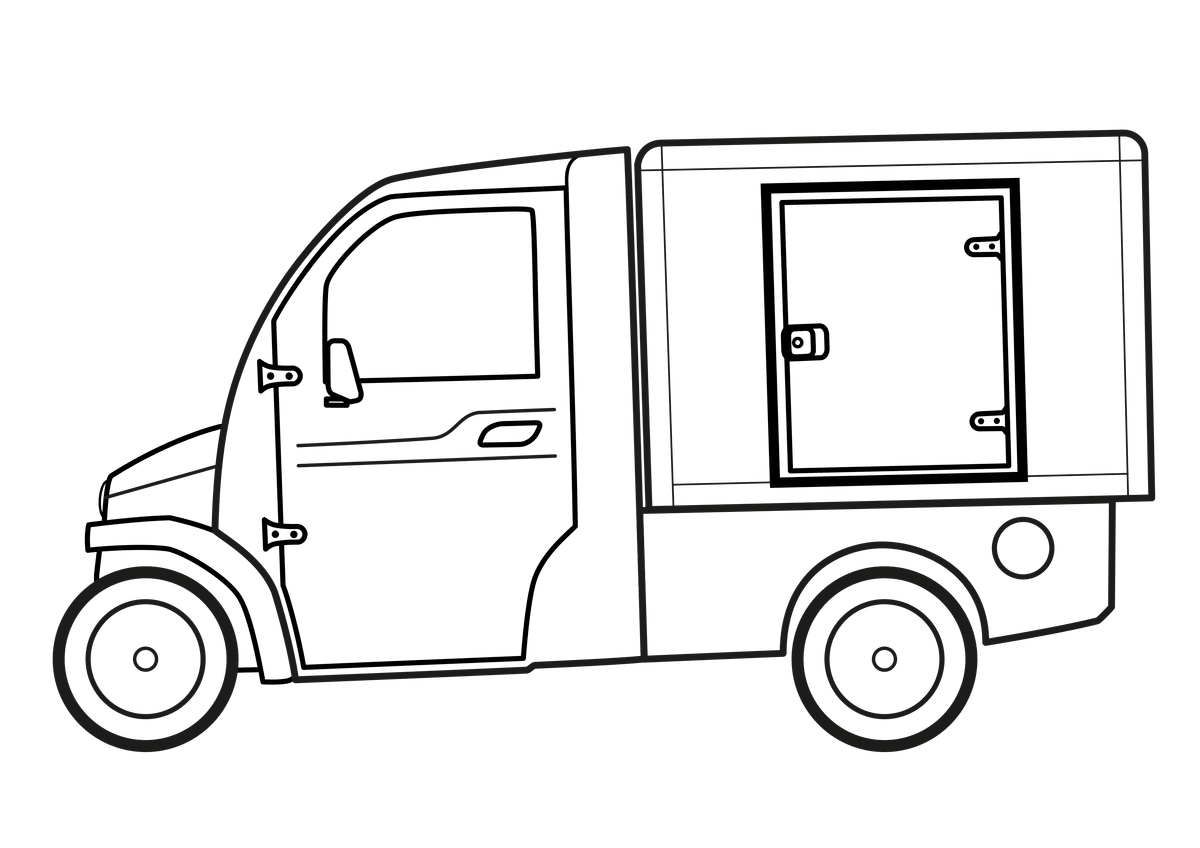

    Jonway EV T21 Box with side door mini truck

    Cargo Box

    Side door *

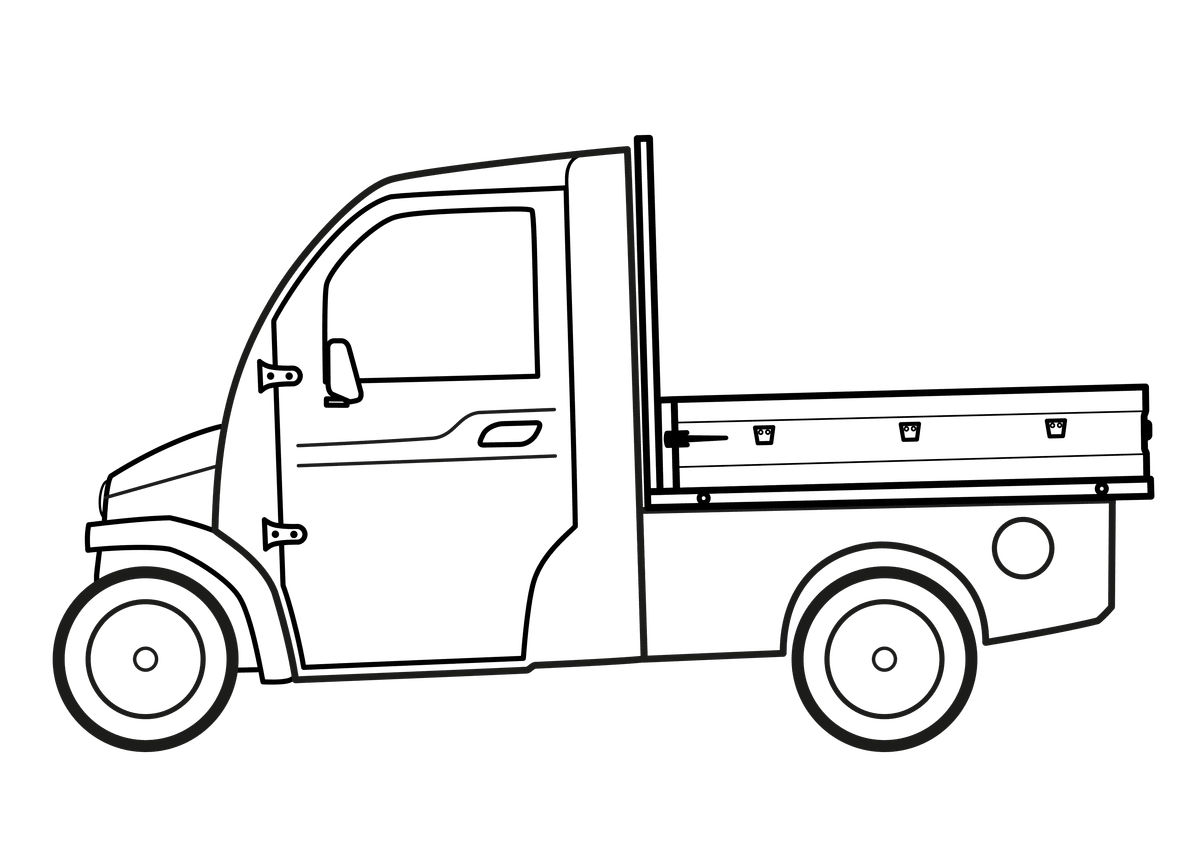

    Jonway EV T21 pickup mini truck

    Pick-up

    Alloy bucket *

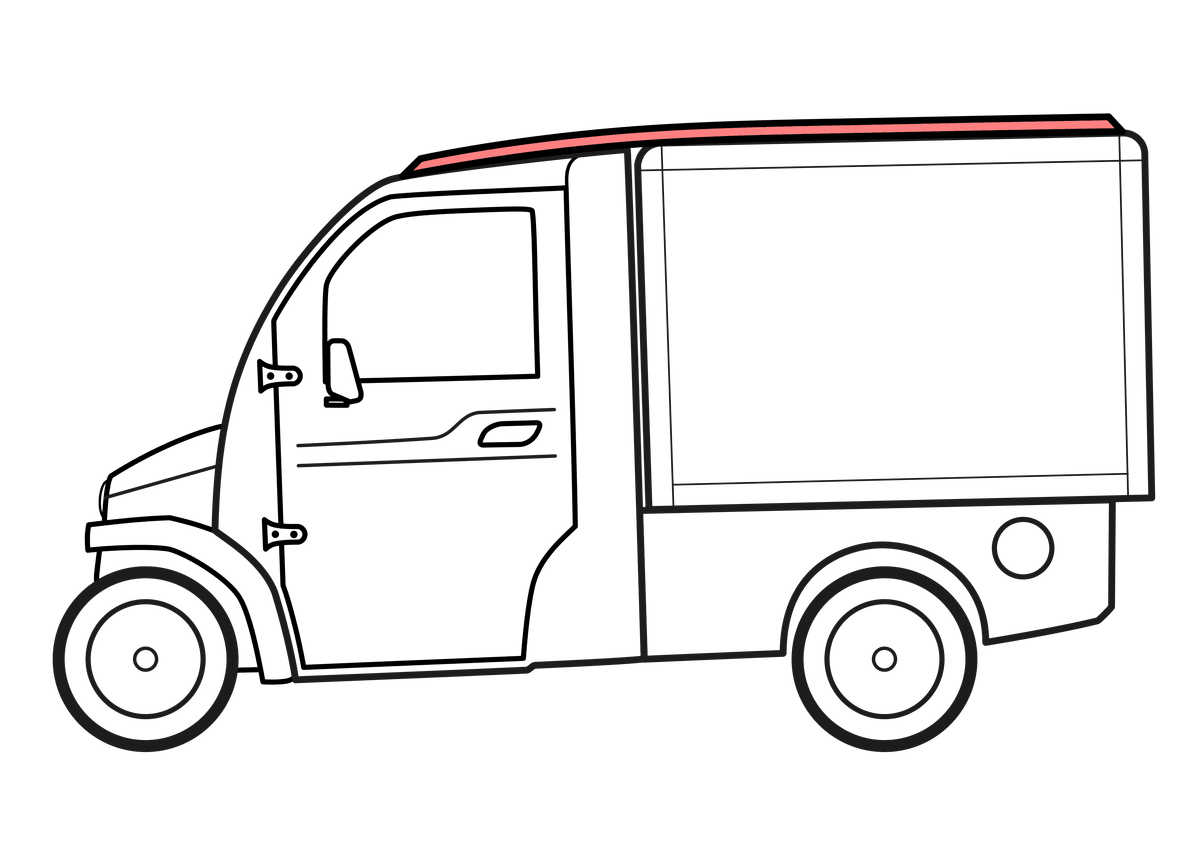

    Jonway EV T21 Box with solar roof mini truck

    Cargo box

    Solar roof *

    Jonway EV T21 Flatbed mini truck

    Flatbed

    Base model

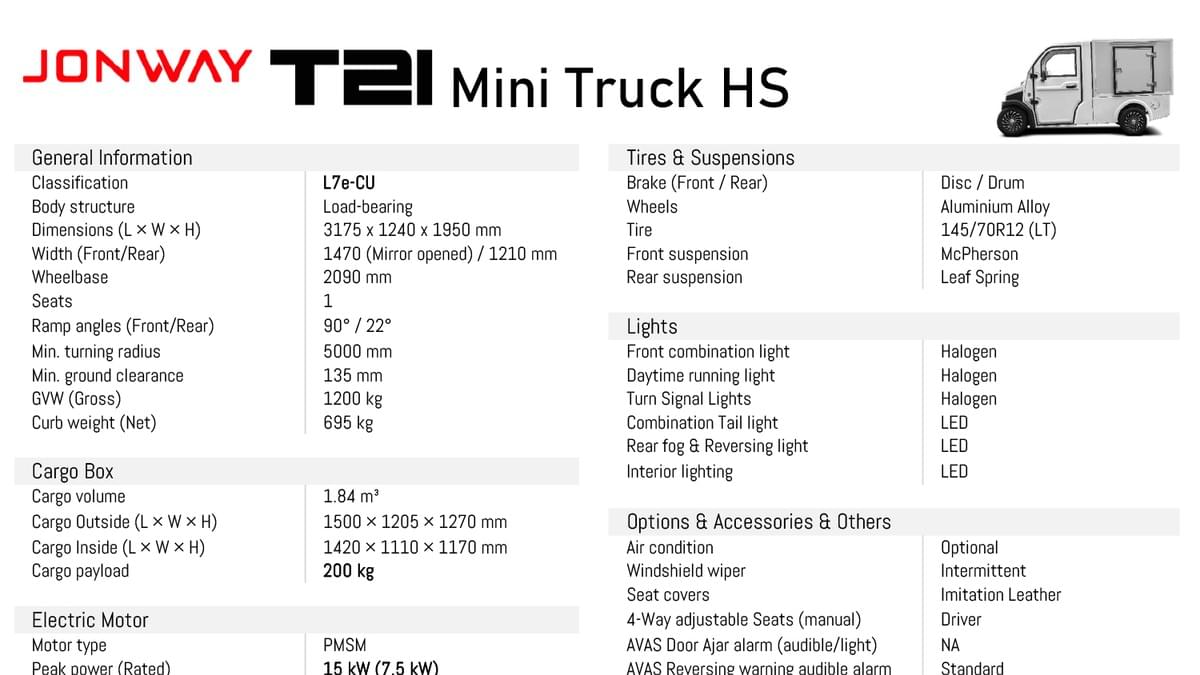

  • Specs Sheet

    Full specifications

    DOWNLOAD
    T21 Specifications

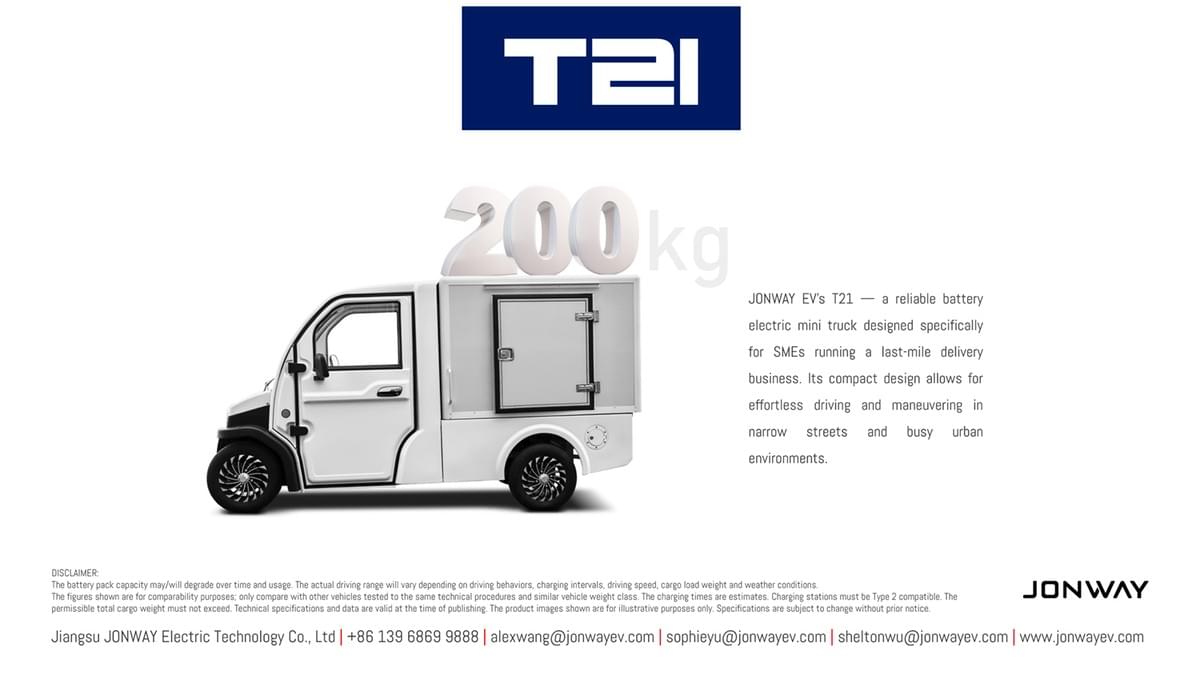

    Brochure

    Detailed information

    DOWNLOAD
    T21 Brochure
